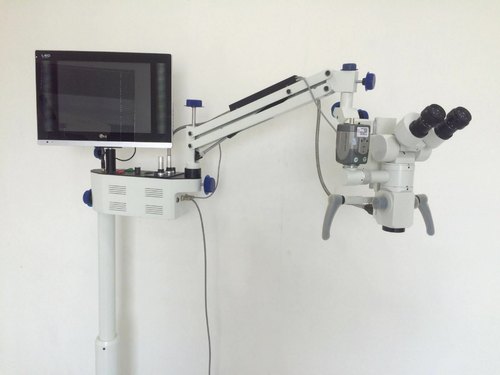

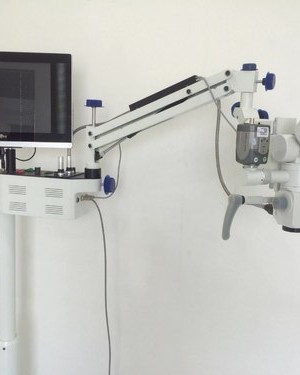

Tiltable Dental Microscope

TECHNICAL SPECIFICATIONS:

MICROSCOPE SECTION:

• Innovative designed, highly versatile with latest 0 ° to 180 ° Ergo Tilt optical system

• 12.5x Wide Field eye pieces

• Magnification: 4x, 6x, 10x, 16x & 25x five step magnichanger

• Attachment: Beam Splitter with ‘C’ mount and CCD Digital camera with DSLR Attachment

• Working distance: F = 250mm objective lens

• Interpupillary Distance Adjustment: 55mm to 75mm

• Focusing - Motorized with Foot Control

ILLUMINATION SECTION:

• Light Source: LED Light source with bright white led light

• Illumination Control: Continuous Adjustment

• Field of Illumination: 70mm

STAND SECTION:

• Type: Mobile Floor Stand on four castor wheel for easier handling and absolute stability

• Vertical Height Adjustment Range of counter balanced pantographic Arm: 300 to 560mm

• Rotation of Arm: 320 with lock

• Electrical Power: AC 220V
